Module registry#

The Module registry contains the Terraform modules that can be used to create Resources. Tenant modules come from your Git repository; Reply CMP-managed modules are maintained by the platform team.

Navigate: left navigation → Provisioning → Module registry.

Understand the registry#

A module record represents one reusable Terraform folder. A version represents one immutable, reviewed commit of that folder.

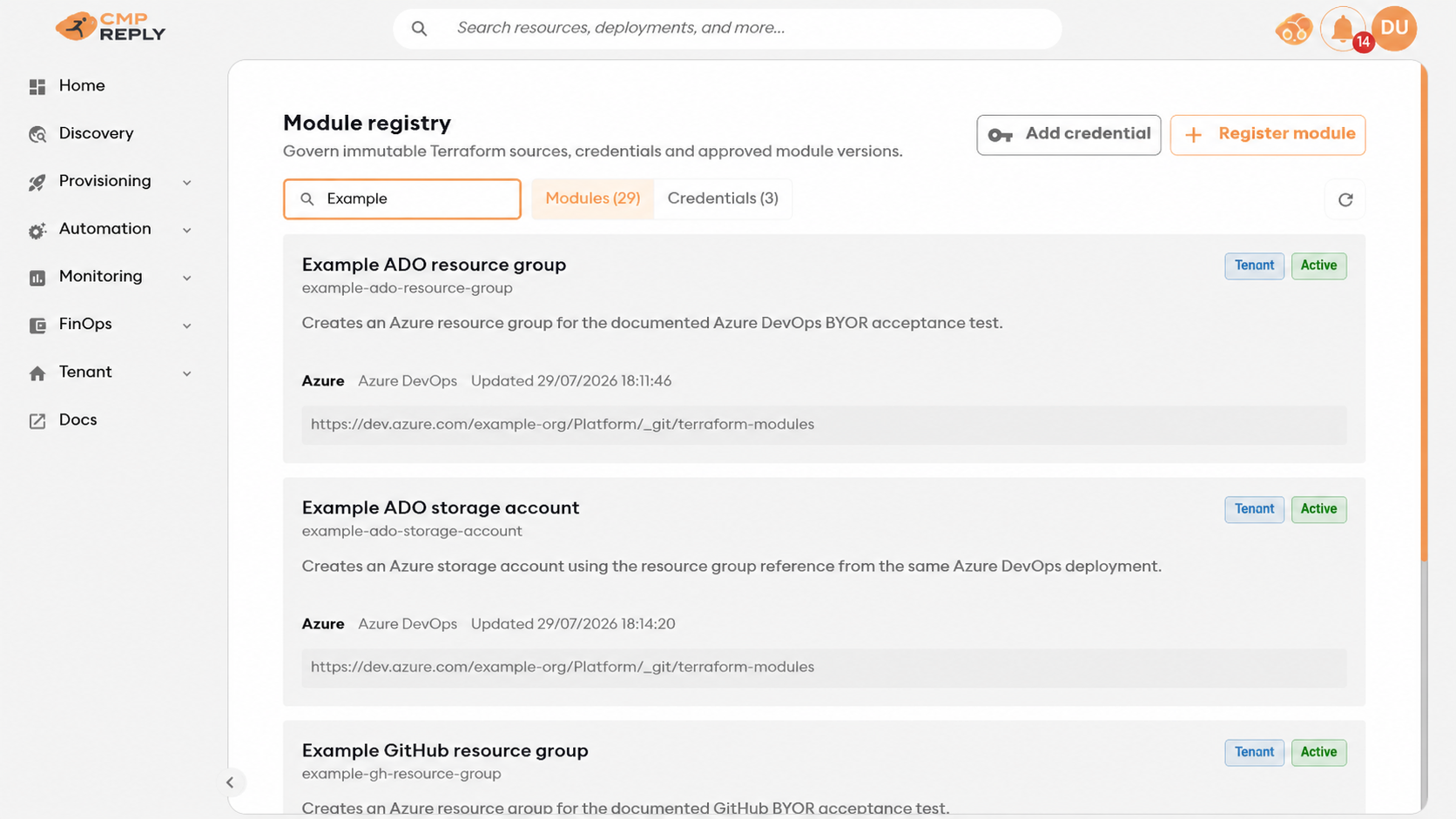

Module registry filtered to reviewed Azure DevOps and GitHub example modules — Use search and provider filters to find modules. Open a module to review its repository, immutable versions and validation evidence.#

For example, a monorepo with these paths needs three registrations:

modules/network
modules/storage
modules/database

All three records can use the same repository and credential, but each has its own versions and approvals.

Add a credential#

Open Credentials → Add credential when the repository is private or Reply CMP must start a customer runner.

Type	Use it for
Azure DevOps PAT	Read an Azure DevOps repository and start the selected pipeline.
GitHub fine-grained token	Read and dispatch one or more explicitly selected repositories.
GitHub App	Organisation-managed GitHub access with central installation and key rotation.

Enter the secret once and optionally choose its next rotation date. Reply CMP stores it in the tenant vault; the value is never returned to the UI or passed to Terraform.

Add provisioning credential panel with credential name, type, token and rotation date — Use a purpose-based name so operators can identify where the credential is used.#

Rotate replaces the secret without changing references from modules or Deployments. Revoke prevents new repository reads and runner dispatches. Remove a credential record only after nothing uses it.

GitHub credential permissions#

Use a credential that is installed or scoped to the actual repository owner. The three GitHub credential types do not have the same least-privilege model.

Reply CMP task	Fine-grained PAT	GitHub App private key	Classic PAT
Register a module and read a committed version	Select the repository and grant Contents: Read-only	Install the App on the repository and grant Contents: Read-only	repo scope for a private repository
List runner branches and workflows	Contents: Read-only, Actions: Read-only	Contents: Read-only, Actions: Read-only	repo scope for a private repository
Start a GitHub Actions Plan or Apply	Contents: Read-only, Actions: Read and write	Contents: Read-only, Actions: Read and write	repo scope for a private repository
Set up the Reply CMP protected Environment and callback trust	Contents: Read-only, Actions: Read and write, Administration: Read and write, Environments: Read and write	Install the App on the repository with Contents: Read-only, Actions: Read and write, Administration: Read and write, Environments: Read and write	repo scope for a private repository

For a fine-grained PAT, set the Resource owner to the person or organisation that owns the repository, then select only the required repositories. A token scoped to All repositories under a personal account does not cover an organisation repository. An organisation can require owner approval before a fine-grained token becomes usable. A GitHub App follows the same repository boundary through its installation: install it only on the required repositories.

A classic PAT is supported for compatibility but is not the recommended choice: the repo scope is broader than the explicit repository permissions above. GitHub can also block classic PAT access to an organisation. Reply CMP never needs the GitHub App Workflows permission because it does not create or modify workflow YAML files.

The explicit Set up environment action creates the protected Environment, restricts it to the chosen branch and opts the selected repository into GitHub’s immutable OIDC subject while preserving its existing claim-key template. This gives the Reply CMP callback an immutable repository identity without asking users to manage a callback app registration. It does not copy Azure, AWS or GCP Connection data into GitHub: Terraform and its state backend receive the exact vault-pinned Connection credentials only when the runner claims an operation. You can use an elevated credential only for this setup action, then select a separate lower-privilege runtime credential before saving the runner.

GitHub documents these permissions separately for workflow dispatch, Environments and branch policies and OIDC subject configuration. Their permissions are additive for the setup operation.

Important

Registering a module and configuring a runner are separate actions. A module repository does not need a workflow. The Workflow list appears only after you select the repository that contains the GitHub Actions runner file.

Register one module#

Select Register module and complete the identity and source sections.

1. Identify the module#

Field	What to enter
Module name	Stable lowercase identifier, for example `network-hub`.
Display name	Friendly catalogue name, for example `Network hub`.
Cloud provider	Azure, AWS or GCP.
Source provider	Azure DevOps or GitHub.
Description	What the module creates and when a team should use it.

2. Connect the source#

Field	What to enter
Canonical repository URL	Repository root, not a branch or folder URL.
Module path	Folder relative to the repository root. Leave empty only when the module is at the root.
Default ref	Protected branch or tag proposed for the next version.
Repository credential	An active matching credential, or empty for a public repository.

Register tenant module panel with module identity and repository source sections — One registration represents one module path, even when the repository contains many modules.#

Registration stores where the module lives; it does not ask you to paste an input schema. When you add a version, Reply CMP reads and validates schema.json, .terraform.lock.hcl and the Terraform files from the exact selected commit.

The module path can be a relative symbolic link, for example ai_search/latest -> v1.1.0. Reply CMP resolves the alias within the repository archive at the selected commit and stores a package containing regular files. Moving latest in a later commit does not change an existing module version. Symbolic links in unrelated module folders do not block the import.

Links inside the resolved module must stay within that module directory. Absolute targets, missing targets, cycles, file/directory collisions and links that escape the repository or module are rejected. Link chains support at most 32 hops; both source archives and materialized modules are limited to 2,048 entries and 100 MiB of expanded content, with a 25 MiB compressed source archive limit. ZIP uploads must include the link targets and preserve symbolic-link metadata; a plain text file containing a target path is not treated as a link.

Prepare the module folder#

The registered folder must contain:

Terraform .tf files;
schema.json describing the user-editable module input;
.terraform.lock.hcl containing checksums for every provider used by the module;
root declarations for environment, tenant_id, deployment_name, location and resource_name.

Reply CMP supplies all five values for every Resource execution. For standalone Terraform use, environment, tenant_id and deployment_name may default to null; the module must handle their absence. Keep location and resource_name required when the module uses them, and default them to null only when they are unused. Exclude all five from schema.json.

Nested modules can use constant local paths such as ./modules/network. A remote nested dependency can use a GitHub SSH source, for example:

module "private_endpoint" {
  source = "git::ssh://git@github.com/example/terraform-modules.git//private_endpoint/v1.0.1?ref=main"
}

When a version is submitted, Reply CMP resolves supported GitHub SSH dependencies through the GitHub API and includes their files in the immutable package. Use a protected tag or commit SHA for reproducible standalone use; CMP snapshots the resolved commit either way. Include an explicit ref for dependencies outside the parent repository. For private dependencies of a GitHub-sourced module, the GitHub App or fine-grained PAT attached to the parent module must have Contents: Read access to each dependency repository. Private nested GitHub dependencies are not supported for Azure DevOps-sourced parent modules; public dependencies do not need a credential. No SSH private key is stored: the GitHub credential is used only while importing the version and is not passed to Terraform. Standalone Terraform clients use their own GitHub SSH configuration.

Create provider locks from that exact folder and commit the result:

terraform providers lock
git add .terraform.lock.hcl
git commit -m "Lock Terraform providers"

Reply CMP currently runs Terraform 1.15.8; use compatible CLI and provider constraints rather than pinning a child module to one exact executable or provider release. Provider configuration and credentials belong to the runner, not inside the reusable module.

Important

Do not type provider checksums into Reply CMP. The platform reads schema.json and .terraform.lock.hcl from the exact selected commit and validates them automatically.

State, plan, tfvars, certificate, private-key, .git and .terraform files are rejected from module archives.

Prepare a module with an AI coding assistant#

Reply CMP provides two optional Agent Skills for repositories maintained with GitHub Copilot, Claude Code, Codex or another compatible coding assistant. A skill contains reviewable instructions only: it does not receive Reply CMP credentials and it must never run Plan or Apply.

Skill	Use it when
Generate Reply CMP schema	The Terraform inputs already exist and you want the assistant to create or repair `schema.json`.
Author a Reply CMP module	You want the assistant to prepare or review the complete module folder, including platform inputs, provider locks and prohibited patterns.

Extract the selected ZIP into the project skill directory used by your assistant:

Assistant	Project location
Codex	`.agents/skills/<skill-name>/`
GitHub Copilot	`.github/skills/<skill-name>/` or `.agents/skills/<skill-name>/`
Claude Code	`.claude/skills/<skill-name>/`

Commit the skill with the repository so module owners and reviewers use the same contract. Then ask the assistant, for example: Use reply-cmp-generate-schema to generate schema.json for this module. Always review the Terraform and generated schema before registering a version.

Add and approve a version#

Open the module and select Add version.

Choose repository source.
Enter a new semantic version such as 1.2.0.
Enter a protected tag or branch. A protected tag is recommended for releases.
Keep Terraform version 1.15.8.
Submit the version.
Open the version and review its exact commit, source link, schema, connected credential or public-source status, provider locks and validation result.
Approve it when the evidence is correct.

Approved module version showing its pinned commit, input schema and connected source credential — Example approved enterprise module version and its immutable source evidence.#

State	Meaning
Pending	Validation passed and review is required.
Approved	The version can be selected by new or existing Resources.
Rejected	Review was closed with a reason; create another version from corrected source.
Revoked	New use is blocked while history remains visible.

Approval and revocation never rewrite an existing version. If a branch later moves, the approved version remains pinned to the original commit and content digests.

Update one Resource to another version#

Approving a new module version does not upgrade existing Resources automatically.

Open Deployments → your Deployment → Resources.
Open the Resource to update.
Select Change module version.
Choose an approved version and review the read-only version details.
Complete any new required inputs. Existing compatible values are carried forward.
Save the Resource. Only this Resource becomes Draft.
Create a fresh Plan and review replacements and deletes before Apply.

Repeat this process only for the Resources that should adopt the new version.

Starter repositories#

The starter packages contain a valid example module, schema, provider lock and the complete runner contract.
